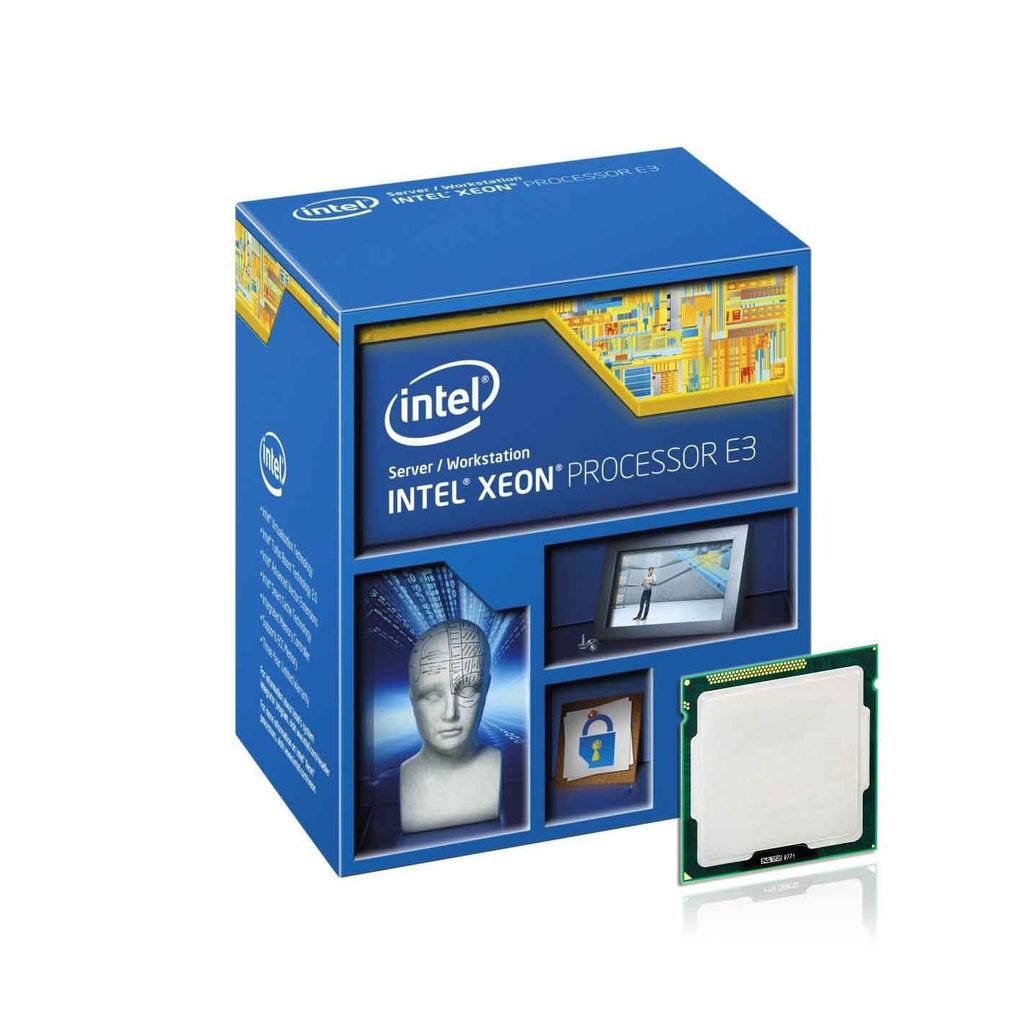

CPU Intel Xeon E3-1230 V2 ( 3.3GHZ / 8M CACHE / 4 CORES

CPU Intel Xeon E3-1230 V2 ( 3.3GHZ / 8M CACHE / 4 CORES – 8 THREADS )

General information
Type	CPU / Microprocessor
Market segment	Server
Family	Intel Xeon E3-1200 v2
Model number ?	E3-1230 v2
CPU part numbers	E3-1230 v2 is an OEM/tray microprocessor BX80637E31230V2 is a boxed microprocessor
Frequency ?	3300 MHz
Turbo frequency	3700 MHz
Bus speed ?	5 GT/s DMI
Package	1155-land Flip-Chip Land Grid Array (FCLGA 1155)
Socket	Socket 1155 (Socket H2)
Size	1.48" x 1.48" / 3.75cm x 3.75cm
Introduction date	May 14, 2012


Architecture / Microarchitecture
Microarchitecture	Ivy Bridge
Platform	Carlow
Processor core ?	Ivy Bridge-H2
Manufacturing process	0.022 micron High-K metal gate process
Data width	64 bit
The number of cores	4
The number of threads	8
Floating Point Unit	Integrated
Level 1 cache size ?	4 x 32 KB instruction cache 4 x 32 KB data cache
Level 2 cache size ?	4 x 256 KB
Level 3 cache size	8 MB
Multiprocessing	Uniprocessor
Features	MMX instruction set SSE SSE2 SSE3 Supplemental SSE3 SSE4.1 ? SSE4.2 ? AES instructions Advanced Vector Extensions Extended Memory 64 technology (EM64T) ? Execute disable bit ? Virtualization technology (VT-x / VT-d) Turbo Boost technology 2.0 Trusted Execution technology HyperThreading technology ?
Low power features	Enhanced SpeedStep technology ?
On-chip peripherals	Dual-channel DDR3 memory controller Direct Media Interface 2.0 PCI Express interface

Electrical/Thermal parameters
Thermal Design Power ?	69 Watt
