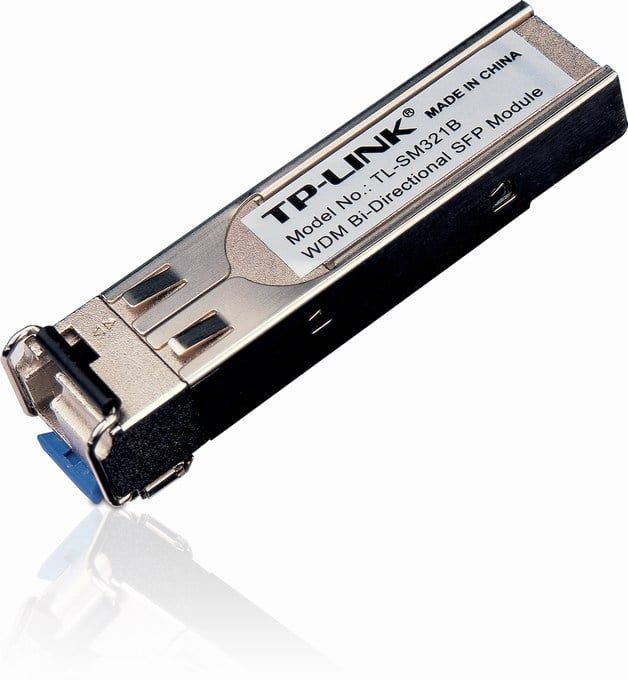

Gigabit WDM Bi-Directional SFP TP-LINK TL-SM321B

ĐẶC ĐIỂM NỔI BẬT

1000Base-BX WDM Bi-Directional SFP Module TP-LINK TL-SM321B
WDM Bi-Directional SFP Module
Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving
Supports WDM Bi-Directional technology, using a single strand of fiber
TX: 1310nm / RX: 1550nm
Internal +3.3V Power Supply
In pairs with TL-SM321A
Plug-and-Play
Suitable Products: TL-SG5428, TL-SL5428E, TL-SG3210/3216/3424/3424P, TL-SL3428/3452, TL-SG2216/2424, TL-SL2210WEB/2218WEB/2428WEB/2452WEB, TL-SL1351 and MC200L

Standards and Protocols	IEEE 802.3z, CSMA/CD, TCP/IP
Power Supply	3.3V
Cabel	Single-mode Fiber
Fyber Type	9/125 um Single-mode
Max. Cable Length	10km
Data Rate	1.25Gbps
Port Type	LC
Wave Length	TX: 1310nm / RX: 1550nm
Safety & Emission	FCC, CE
Environment	Operating Temperature: 0℃~70℃ (32℉~158℉)
	Storage Temperature: -40℃~80℃ (-40℉~176℉)
	Operating Humidity: 10%~90% non-condensing
	Storage Humidity: 5%~90% non-condensing
