Sản phẩm
|
Bo mạch chủ
|
|
Tên Hãng
|
ASROCK
|
|
Model
|

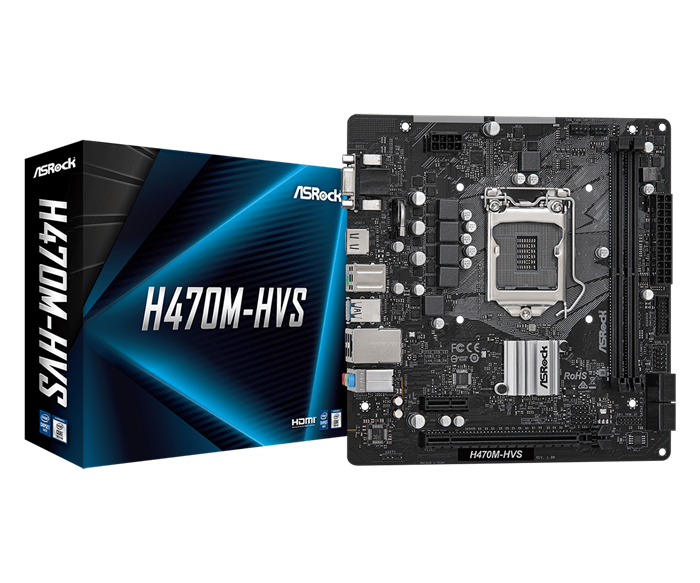

H470M-HVS
|
|
CPU hỗ trợ
|
Intel
|
|
Chipset
|
H470
|
|
RAM hỗ trợ
|
2 x DDR4 slots, Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC
|
|
Khe cắm mở rộng
|
1 x PCI Express 3.0 x16 Slot
1 x PCI Express 3.0 x1 Slot
|
|
Ổ cứng hỗ trợ
|
4 x SATA3 6.0 Gb/s
|
|
Cổng kết nối (Internal)
|
- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
|
|
Cổng kết nối (Back Panel)
|
- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x HDMI Port
- 4 x USB 2.0 Ports (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
|
|
LAN / Wireless
|
PCIE x1 Gigabit LAN 10/100/1000 Mb/s
|
|
Kích cỡ
|
Micro ATX Form Factor
19.7 cm x 18.8 cm
|
