Mainboard Asus EX H410M-V3

ĐẶC ĐIỂM NỔI BẬT

Bo mạch chủ - Mainboard Asus EX H410M-V3

Mainboard Asus EX H410M-V3 là một trong những dòng sản phẩm main máy tính với khả năng cung cấp năng lượng được tăng cường và thiết kế làm mát tối ưu hóa cung cấp nhiều diện tích bề mặt hơn để tản nhiệt.

Tận dụng tối đa quá trình xây dựng trò chơi của mình với khả năng cung cấp năng lượng được đánh giá cao và làm mát tối ưu. Điều khiển thông minh cho phép bạn dễ dàng quản lý các cài đặt ép xung, làm mát và kết nối mạng, cung cấp cho bạn mọi thứ bạn cần để khai thác toàn bộ tiềm năng của bản dựng để có hiệu suất chơi trò chơi hàng đầu.

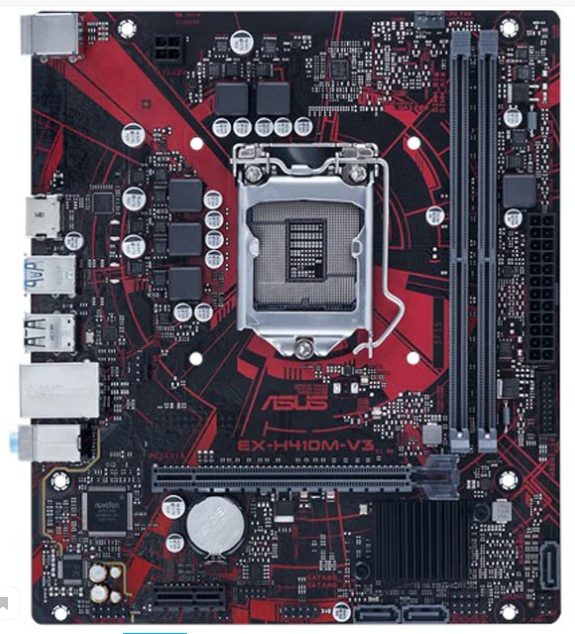

Một số hình ảnh chi tiết mainboard Asus EX H410M-V3

Xem thêm

Thông số kỹ thuật

CPU	Intel® Socket 1200 for 10 Gen Intel Core, Pentium Gold and Celeron Processors * Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** Supports CPU up to 65 W
Chipset	Intel® H410
Memory	2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic	1 x HDMI 1.4b *Graphics specifications may vary between CPU types.
Expansion Slots	Intel® 10th Gen Processors 1 x PCIe 3.0 x16 (x16 mode) Intel® H410 Chipset 1 x PCIe 3.0 x1
Storage	Total supports 3x SATA 6Gb/s ports Intel® H410 Chipset : 3 x SATA 6Gb/s port(s),
LAN	Realtek® RTL8111H
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC * – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : – Audio Shielding – Dedicated audio PCB layers – Premium Japanese audio capacitors * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
USB Ports	Rear USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A) Front USB Port ( Total 4 ) 2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(2 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A)
Special Features	ASUS 5X Protection III : – ASUS SafeSlot Core: Fortified PCIe Slot prevents damage – ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! – ASUS Overvoltage Protection: World-class circuit-protecting power design – ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! – ASUS DIGI+ VRM: Premium components provide better power efficiency Non-stop Durability : – Anti-moisture coating – Outstanding protection against moisture and corrosion – USBGuard- 120% higher voltage tolerance Non-stop Gaming : – Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals – Seperated layers for left and right tracks to ensures both channels delivering the consistent and equal quality – Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity Non-stop Challenger : – ASUS iCafe Labs Certified – Top games and 100+ peripherals tested ASUS Q-Design : – ASUS Q-Slot – ASUS Q-DIMM
Back I/O Ports	1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 1 (blue) Type-A 4 x USB 2.0 3 x Audio jack(s)
Internal I/O Ports	1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 3 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Speaker connector 1 x USB 3.2 Gen 1 connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
Accessories	User’s manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x Supporting DVD
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Operating System	Windows® 10 64-bit
Form Factor	mATX Form Factor 8.4 inch x 7.2 inch ( 21.3 cm x 18.3 cm )
