THÔNG TIN KỸ THUẬT

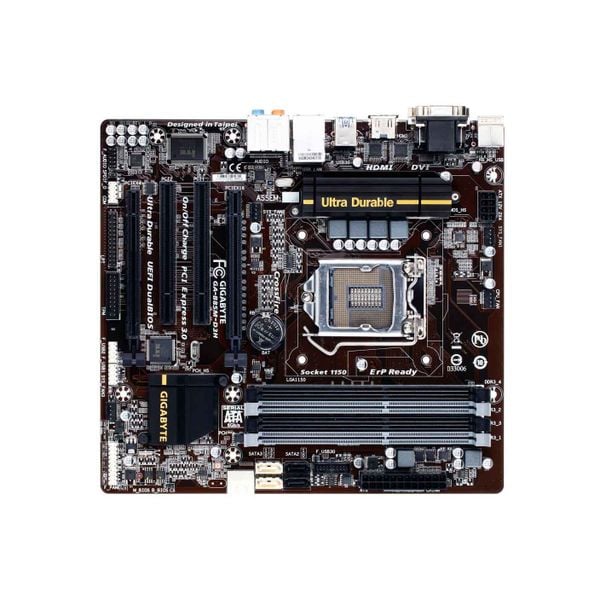

| Dòng sản phẩm | Mainboard GIGABYTE GA B85M - D3H (V1.0) |
| Bộ xử lý | Intel Core i3/i5/i7/Pentium/Celeron Processors |
| Socket | LGA1150 |
| Chipset | Intel B85 Express |
| Bộ nhớ |
Dual channel DDR3 1333/1600 MHz, up to 32GB |
| Đồ họa |
Maximum shared memory of 1 GB Support 1 x DVI-D port (1920 x 1200 pixels) Support 1 x D-Sub port (1920 x 1200 pixels) Support 1 x HDMI port (4096 x 2160 pixels) |
| Network | Speed: 10/100/1000 Ethernet |
| Khe cắm mở rộng |
1 x PCIe x 16 slots, running at x 4 (PCIE x 4) 1 x PCIe 3.0 x 16 slots, running at x 16 (PCIE x 16) 2 x PCI slots |
| Cổng HDD |
2 x SATA2 3.0 Gb/s 4 x SATA3 6.0 Gb/s |
| Cổng USB |
8 x USB 2.0 port (4 port on the back panel, 4 port USB headers) 4 x USB 3.0 port (2 port on the back panel, 2 port USB headers) |
| Cổng PS/2 |
1 x PS/2 Mouse port 1 x PS/2 Keyboard port |
| Cổng Audio |
2/4/5.1/7.1 Channel HD Audio Support for S/PDIF Out |
