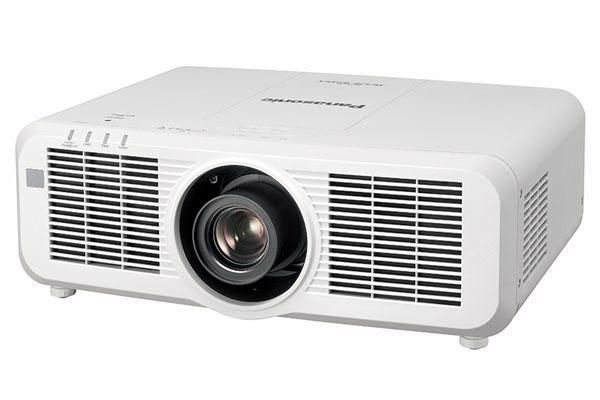

Máy chiếu Panasonic PT-MZ770

ĐẶC ĐIỂM NỔI BẬT

Công nghệ trình chiếu: LCD.
Cường độ chiếu sáng: 8000 Ansi Lumens.
Độ phân giải: 1920 x 1200 pixels (WUXGA).
Độ tương phản: 3.000.000:1.
LED/Laser-Combined: 20.000 giờ ( Không thay thế bóng đèn).
Chức năng lập lịch trình.
Điều chỉnh góc nghiêng và chỉnh vuông hình: ±40°, ±20°.
Kích thước phóng to màn hình: 40-400 inch.

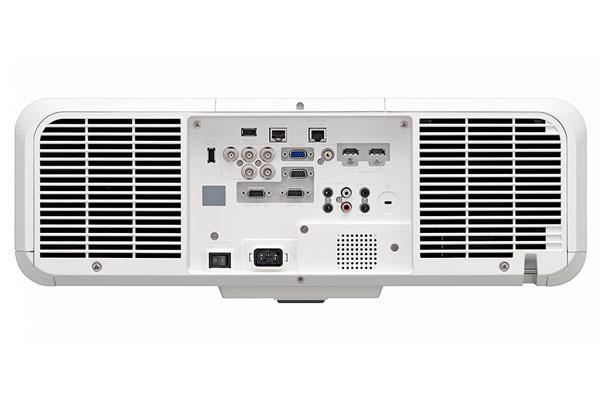

Tương thích với tín hiệu ngõ vào/ ngõ ra: HDMI IN, RGB INx2, VIDEO IN, MONITOR OUT, AUDIO IN x3, VARIABLE AUDIO OUT, SERIAL IN, REMOTE IN x2, LAN, DIGITAL LINK/LAN, MEMORY VIEWER/ PAIRING, DC OUT, WIRELESS MODULE.
Hệ thống đèn laser kép cho phép hoạt động liên tục 24/7.
Điều khiển qua mạng LAN.
Loa tích hợp: 10W.
Công suất tiêu thụ: 500W.
Kích thước: 560 x 205 x 443.2mm.
Trọng lượng: 16.9kg.

Thông số kỹ thuật

Power supply	100–240 V AC, 50/60 Hz
Power consumption	PT-MZ770/MZ770L: 570 W
Panel size	19.3 mm (0.76˝ ) diagonal (16:10 aspect ratio)
Display method	Transparent LCD panel (× 3, R/G/B)
Drive method	Active matrix
Pixels	2,304,000 (1920 × 1200) × 3, total of 6,912,000 pixels
Lens	PT-MZ770/MZ670: Powered zoom (Throw Ratio 1.6–2.8 :1), F = 1.7–2.3, f = 26.8–45.5 mm PT-MZ770L/MZ670L: Optional powered zoom/focus lenses
Light source	Laser diode (Class 1) (Class 3R for US models)
Filter	x 1, estimated maintenance time: approx. 20,000 hours*1
Screen size (diagonal)	1.02–10.16 m (40–400 in), 16:10 aspect ratio 1.52–10.16 m (60–400 in) with the ET-ELW22, 16:10 aspect ratio
Brightness*2	PT-MZ770/MZ770L: 8,000 lm
Center-to-corner uniformity*2	90 %
Contrast	3,000,000:1 (Dynamic Mode/Dynamic Contrast 1/2)
Resolution	1920 × 1200 pixels*3
Optical axis shift45 (from center of screen)
Vertical	±67 % (powered) (for supplied lens)
Horizontal	±35 % (powered) (for supplied lens)
Keystone correction range*4	Vertical: ±25°, Horizontal: ±30° (for supplied lens)
Installation	Horizontal/Vertical, free 360-degree installation
Built-in speaker	10 W (monaural)
Cabinet materials	Molded plastic (PC + ABS)
Dimensions (W x H x D)	PT-MZ770/MZ670: 560 x 2056 x 443 mm (22 1/16˝ x 8 1/16˝ 6 x 17 7/16˝ ) (with supplied lens) PT-MZ770L/MZ670L: 560 x 2056 x 428 mm (22 1/16˝ x 8 1/16˝ 6 x 16 27/32˝ ) (without lens)
Weight*7	PT-MZ770: Approximately 17.1 kg (37.7 lbs) (with supplied lens) PT-MZ770L: Approximately 16.2 kg (35.7 lbs) (without lens) PT-MZ670: Approximately 16.9 kg (37.3 lbs) (with supplied lens) PT-MZ670L: Approximately 16.1 kg (35.5 lbs) (without lens)
Operating noise*2	PT-MZ770/MZ770L: 35 dB (Normal/ECO Mode), 28 dB (Quiet Mode) PT-MZ670/MZ670L: 32 dB (Normal/ECO Mode), 26 dB (Quiet Mode)
Operating environment	Operating temperature: 0 °C– 45 °C (32 °F –113 °F)*8, operating humidity: 20 %–80 % (no condensation)
Applicable software/application	Logo Transfer Software, Multi Monitoring & Control Software, Wireless Manager ME, Plug and Share, Smart Projector Control App, Wireless Projector App
Supplied accessories	Power cord with power cord holder*9, wireless/wired remote control unit × 1, batteries (R03/LR03/AAA type × 2), CD-ROM × 1 (operation manual)
