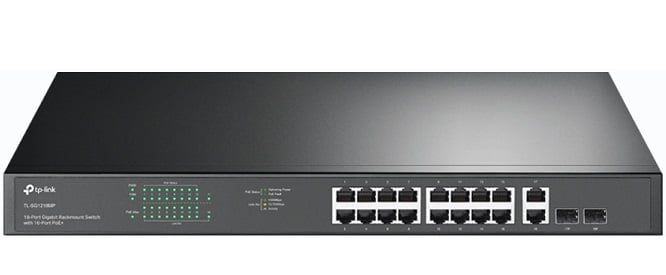

Switch TP-LINK TL-SG1218MP 18-Port Gigabit with 16 PoE+ Rackmount PoE

ĐẶC ĐIỂM NỔI BẬT

18-Port Gigabit with 16 PoE+ Rackmount PoE Switch TP-LINK TL-SG1218MP
16× gigabit PoE+ RJ45 ports, 2× gigabit non-PoE RJ45 ports, and 2× combo gigabit SFP slots
High PoE power budget with up to 30W for each PoE port and 250W for all PoE ports
Working with IEEE 802.3af/at compliant PDs
Plug and play, with no configuration and installation needed
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Durable metal casing and professional heat dissipation design ensure a wide operating temperature range (0–50℃)

Standards and Protocols	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface	16× PoE+ gigabit RJ45 ports 2× gigabit non-PoE RJ45 ports 2× combo gigabit SFP slots
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF, SMF
Fan Quantity	2
Physical Security Lock	Yes
Power Supply	100–240 VAC, 50/60 Hz
PoE+ Ports(RJ45)	Standard: 802.3at/802.3af compliant PoE Ports: Ports 1–16 PoE Power Budget: 250 W
Dimensions (W x D x H)	17.3 × 7.1 × 1.73 in (440 × 180 × 44 mm)
Mounting	Rack Mountable
Max Power Consumption	21.4 W (220/50 Hz. no PD connected) 286.64 W (220/50 Hz. with 250 W PD connected)
Max Heat Dissipation	72.97 BTU/h (no PD connected) 977.44 BTU/h (with 250 W PD connected)
Switching Capacity	36 Gbps
Packet Forwarding Rate	26.78 Mbps
MAC Address Table	8K
Packet Buffer Memory	4.1 Mbit
Advanced Functions	Compatible With IEEE 802.3af/at Compliant PDs 802.1p/DHCP QoS Mac Address Auto-Learning And Auto-Aging IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
Jumbo Frame	10 KB
