Switch TP-LINK TL-SG2008P JetStream 8-Port Gigabit with 4-Port PoE+ Sm

Switch TP-LINK TL-SG2008P JetStream 8-Port Gigabit with 4-Port PoE+ Smart

ĐẶC ĐIỂM NỔI BẬT

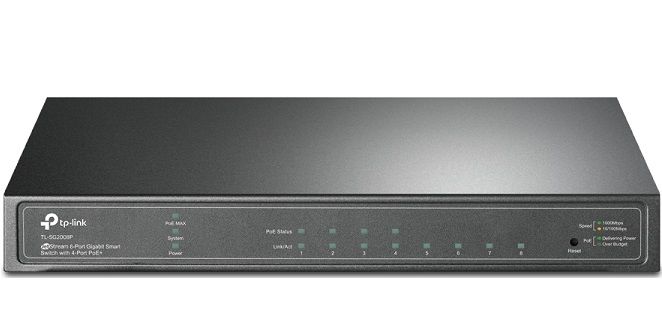

JetStream 8-Port Gigabit with 4-Port PoE+ Smart Switch TP-LINK TL-SG2008P
62W PoE Budget: 4× 802.3at/af-compliant PoE+ ports with a total power supply of 62W.
Full Gigabit Ports: 4× gigabit PoE+ ports and 4× gigabit non-PoE ports provide high-speed connections.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

Thông số kỹ thuật

Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interface	8× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3at/af PoE+) Auto-Negotiation/Auto MDI/MDIX
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity	Fanless
Power Supply	External Power Adapter (Output: 53.5 VDC/ 1.3 A)
Power Consumption	7.9 W (no power device connected) 79.2 W (with 62 W power devices connected)
PoE Ports (RJ45)	Standard: 802.3af/at compliant PoE Ports: 4 Ports Power Supply: 62 W
Dimensions (W x D x H)	209 x 126 x 26 mm
Bandwidth/Backplane	16 Gbps
MAC Address Table	8k
Packet Buffer Memory	4.1 Mbit
Jumbo Frame	9 KB
Quality of Service	802.1p CoS/DSCP priority 8 priority queues Priority Schedule Mode Queue Weight Config Bandwidth Control Smoother Performance Storm Control
L2 and L2+ Features	DHCP Relay DHCP L2 Relay Link Aggregation Spanning Tree Protocol Loopback Detection Flow Control Mirroring Device Link Detect Protocol (DLDP) 802.1ab LLDP/ LLDP-MED
L2 Multicast	511 IPv4, IPv6 shared multicast groups IGMP Snooping Multicast VLAN Registration (MVR) Multicast Filtering MLD Snooping Limited IP Multicast (256 profiles and 16 entries per profile)
IPv6 Support	IPv6 Dual IPv4/IPv6 Multicast Listener Discovery (MLD) Snooping IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 IPv6 applications
VLAN	VLAN Group 802.1Q tag VLAN MAC VLAN Protocol VLAN GVRP Voice VLAN
Access Control List	Support up to 230 entries Time-Range Time-based ACL MAC ACL IP ACL IPv6 ACL Combined ACL Rule Operation Policy Action ACL Rules Binding Actions for flows
Security	AAA 802.1X IP/IPv6-MAC Binding IP Source Guard IPv6 Source Guard DoS Defend Static/Dynamic/Permanent Port Security Broadcast/Multicast/Unicast Storm Control Port Isolation Secure web management through HTTPS with SSLv3/TLS 1.2 Secure Command Line Interface (CLI) management with SSHv1/SSHv2 IP/Port/MAC-based access control
Omada App	Yes
Management Features	Web-based GUI Command Line Interface (CLI) through telnet SNMPv1/v2c/v3 SNMP Trap/Inform RMON (1,2,3,9 groups) SDM Template DHCP/BOOTP Client Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics EEE SNTP System Log

Xem thêm
