Switch Quản Lý JetStream L2+ 24 Cổng TP-LINK TL-SG3428X

ĐẶC ĐIỂM NỔI BẬT

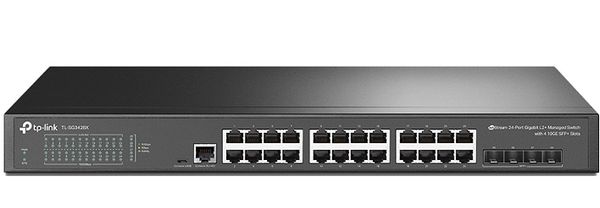

JetStream 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots TP-LINK TL-SG3428X
10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
Gigabit Speeds: 24× gigabit RJ45 ports offer high-speed and reliable connections to other switches and devices.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Static Routing: Helps route internal traffic for more efficient use of network resources.
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities

Thông số kỹ thuật

Interface	24× 10/100/1000 Mbps RJ45 Ports 4× 10G SFP+ Slots 1× RJ45 Console Port 1× Micro-USB Console Port
Fan Quantity	Fanless
Power Supply	100-240 V AC~50/60 Hz
Dimensions (W x D x H)	17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Mounting	Rack Mountable
Max Power Consumption	23.6 W (110V/60Hz)
Max Heat Dissipation	80.353 BTU/h (110 V/60 Hz)
Performance
Switching Capacity	128 Gbps
Packet Forwarding Rate	95.23 Mpps
MAC Address Table	16 K
Jumbo Frame	9 KB
Software
Quality of Service	8 priority queues 802.1p CoS/DSCP priority Queue scheduling Bandwidth Control Smoother Performance Action for Flows
L2 and L2+ Features	Link Aggregation Spanning Tree Protocol Loopback Detection Flow Control Mirroring
L2 Multicast	IGMP Snooping IGMP Authentication MLD Snooping MVR Multicast Filtering: 256 profiles and 16 entries per profile
VLAN	VLAN Group 802.1Q Tagged VLAN MAC VLAN: 7 Entries Protocol VLAN: Protocol Template 16, Protocol VLAN 16 Private VLAN GVRP VLAN VPN (QinQ) Voice VLAN
Access Control List	Support
Security	IP-MAC-Port Binding IPv6-MAC-Port Binding DoS Defend Static/Dynamic Port Security Broadcast/Multicast/Unicast Storm Control 802.1X AAA (including TACACS+) Port Isolation Secure web management through HTTPS with SSLv3/TLS 1.2 Secure Command Line Interface (CLI) management with SSHv1/SSHv2 IP/Port/MAC based access control
L3 Features	16 IPv4/IPv6 Interfaces Static Routing Static ARP Proxy ARP Gratuitous ARP DHCP Server DHCP Relay DHCP L2 Relay
Management	Web-based GUI Command Line Interface (CLI) through the console port, telnet SNMP v1/v2c/v3 SDM Template DHCP/BOOTP Client 802.1ab LLDP/LLDP-MED DHCP AutoInstall Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics EEE Password Recovery SNTP System Log
Advanced Features	Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule ZTP (Zero-Touch Provisioning)
