THIẾT BỊ TƯỜNG LỬA FIREWALL FORTINET FORTIGATE FG-100F-BDL-950-12 UNIFIED (UTP) PROTECTION APPLIANCE
The FortiGate 100F series delivers next generation firewall (NGFW) capabilities for mid-sized to large enterprises deployed at the campus or enterprise branch level. Protects against cyber threats with high-powered security processors for optimized network performance, security efficacy and deep visibility. Fortinet’s Security-Driven Networking securely integrates with the new generation of cybersecurity solutions.
Table 1 shows the Quick Specs.
| Product Code | FG-100F-BDL-950-12 |
| Firewall | 20 Gbps |
| IPS | 2.6 Gbps |
| NGFW | 1.6 Gbps |
| Threat Protection | 1 Gbps |
| Interfaces | 1 USB Port 1 Console Port 2x GE RJ45 MGMT/DMZ Ports 2x GE RJ45 WAN Ports 2x GE RJ45 HA Ports 12x GE RJ45 Ports 2x 10 GE SFP+ FortiLink Slots 4x GE SFP Slots 4x GE RJ45/SFP Shared Media Pairs |
Product Details

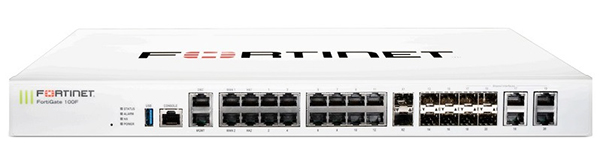

Figure 1 shows the front view of FG-100F. FG-100F-BDL-950-12 is similar with it.
Fortigate 100F
Note:
| 1 | USB Port |
| 2 | Console Port |
| 3 | 2x GE RJ45 MGMT/DMZ Ports |
| 4 | 2x GE RJ45 WAN Ports |
| 5 | 2x GE RJ45 HA Ports |
| 6 | 12x GE RJ45 Ports |
| 7 | 2x 10 GE SFP+ FortiLink Slots |
| 8 | 4x GE SFP Slots |
| 9 | 4x GE RJ45/SFP Shared Media Pairs |
The Optional Accessories & Spares
Table 2 shows the optional accessories or spares of FG-100F-BDL-950-12.
| Optional Accessories &Spares | SKU | Description |
| 1 GE SFP LX Transceiver Module | FG-TRAN-LX | 1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots |
| 1 GE SFP RJ45 Transceiver Module | FG-TRAN-GC | 1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots |
| 1 GE SFP SX Transceiver Module | FG-TRAN-SX | 1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots |
| 10 GE SFP+ transceiver module, short range | FG-TRAN-SFP+SR | 10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots. |
Compare to Similar Items
Table 3 shows the comparison.
| Product Code | FG-100F-BDL-950-12 | FG-200E-BDL-950-12 | FG-300E-BDL-950-12 |
| Firewall | 20 Gbps | 20 Gbps | 32 Gbps |
| IPS | 2.6 Gbps | 2.2 Gbps | 5 Gbps |
| NGFW | 1.6 Gbps | 1.8 Gbps | 3.5 Gbps |
| Threat Protection | 1 Gbps | 1.2 Gbps | 3 Gbps |
| Interfaces | 1 USB Port 1 Console Port 2x GE RJ45 MGMT/DMZ Ports 2x GE RJ45 WAN Ports 2x GE RJ45 HA Ports 12x GE RJ45 Ports 2x 10 GE SFP+ FortiLink Slots 4x GE SFP Slots 4x GE RJ45/SFP Shared Media Pairs | 2x GE RJ45 Management/HA Ports 2x GE RJ45 WAN Ports 14x GE RJ45 Ports 4x GE SFP Slots | 16 x GE SFP slots 16 x GE RJ45 ports 2x GE RJ45 MGMT/HA |
