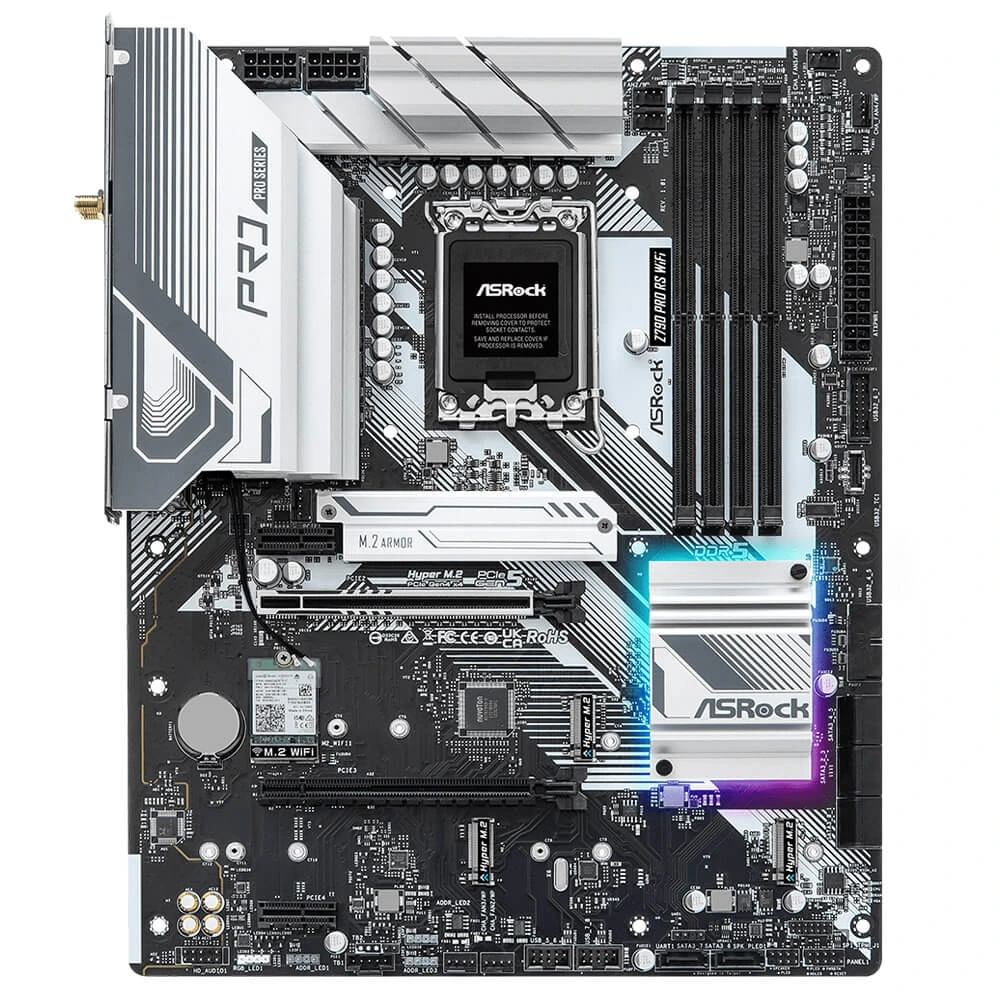

ASRock Z790 Pro RS WiFi

ĐẶC ĐIỂM NỔI BẬT

Mainboard ASROCK Z790 PRO RS WIFI DDR5

Mainboard ASROCK Z790 PRO RS WIFI DDR5 là một sản phẩm mainboard mới nhất của ASROCK, hỗ trợ vi xử lý Intel thế hệ thứ 12, 13 (Alder Lake) và DDR5 RAM. Bo mạch chủ này có thiết kế tản nhiệt mạnh mẽ và hỗ trợ nhiều khe cắm M.2 cho khả năng mở rộng cao hơn. Với tất cả những tính năng này, mainboard ASROCK Z790 PRO RS WIFI DDR5 sẽ là lựa chọn lý tưởng cho các ứng dụng đa nhiệm và chơi game.

Xem thêm

Thông số kỹ thuật

Unique Feature	Superb Productivity – PCIe Gen5 (Graphics) – Dual Channel DDR5 Rock-Solid Durability – 14+1+1 Power Phase, 50A Dr.MOS for VCore+GT with Enlarged Heatsink Armor – Flexible Integrated I/O Shield Ultrafast Connectivity – 2.5G LAN, 802.11ax Wi-Fi 6E Module EZ Update – ASRock Auto Driver Installer EZ Troubleshooter – ASRock Post Status Checker
CPU	– Supports 13^th Gen & 12^th Gen Intel^® Core™ Processors (LGA1700) – Supports Intel^® Hybrid Technology – Supports Intel^® Turbo Boost Max 3.0 Technology – Supports Intel^® Thermal Velocity Boost (TVB) – Supports Intel^® Adaptive Boost Technology (ABT)
Chipset	– Intel® Z790
Memory	– Dual Channel DDR5 Memory Technology – 4 x DDR5 DIMM Slots – Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* – Max. capacity of system memory: 192GB – Supports Intel^® Extreme Memory Profile (XMP) 3.0 *1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
BIOS	– 128Mb AMI UEFI Legal BIOS with GUI support
Graphics	– Intel^® Xe Graphics Architecture (Gen 12)* – 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz – 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz *Intel^® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Audio	– 7.1 CH HD Audio (Realtek ALC897 Audio Codec) – Nahimic Audio
LAN	– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s – Dragon RTL8125BG – Supports Dragon 2.5G LAN Software – Smart Auto Adjust Bandwidth Control – Visual User Friendly UI – Visual Network Usage Statistics – Optimized Default Setting for Game, Browser, and Streaming Modes – User Customized Priority Control
Wireless LAN	– 802.11ax Wi-Fi 6E Module – Supports IEEE 802.11a/b/g/n/ac/ax – Supports Dual-Band 2×2 with extended 6GHz band* support – 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology – Supports Bluetooth + High speed class II – Supports MU-MIMO *Wi-Fi 6E (6GHz band) will be supported by Microsoft^® Windows^® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows^® Update and software updates once available. A 6GHz compatible router is required for 6E functionality.
Slots	CPU: – 1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode* Chipset: – 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* – 2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4)* – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel^® CNVio/CNVio2 (Integrated WiFi/BT)* – Supports AMD CrossFire™ *Supports NVMe SSD as boot disks
Storage	CPU: – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 8 x SATA3 6.0 Gb/s Connectors *Supports Intel^® Volume Management Device (VMD) Supports NVMe SSD as boot disks
RAID	– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices – Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
USB	– 1 x USB 3.2 Gen2x2 Type-C (Front) – 1 x USB 3.2 Gen2 Type-C (Rear) – 1 x USB 3.2 Gen2 Type-A (Rear) – 6 x USB 3.2 Gen1 (2 Rear, 4 Front) – 8 x USB 2.0 (4 Rear, 4 Front) * All USB ports support ESD Protection
Connector	– 1 x eDP Signal Connector – 1 x SPI TPM Header – 1 x Power LED and Speaker Header – 1 x RGB LED Header* – 3 x Addressable LED Headers – 1 x CPU Fan Connector (4-pin)* – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** – 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** – 1 x 24 pin ATX Power Connector – 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) – 1 x Front Panel Audio Connector – 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) Supports in total up to 12V/3A, 36W LED Strip Support in total up to 5V/3A, 15W LED Strip CPU_FAN1 supports the fan power up to 1A (12W). CPU_FAN2/WP supports the fan power up to 2A (24W). ***CHA_FAN1~5/WP support the fan power up to 2A (24W). CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use.

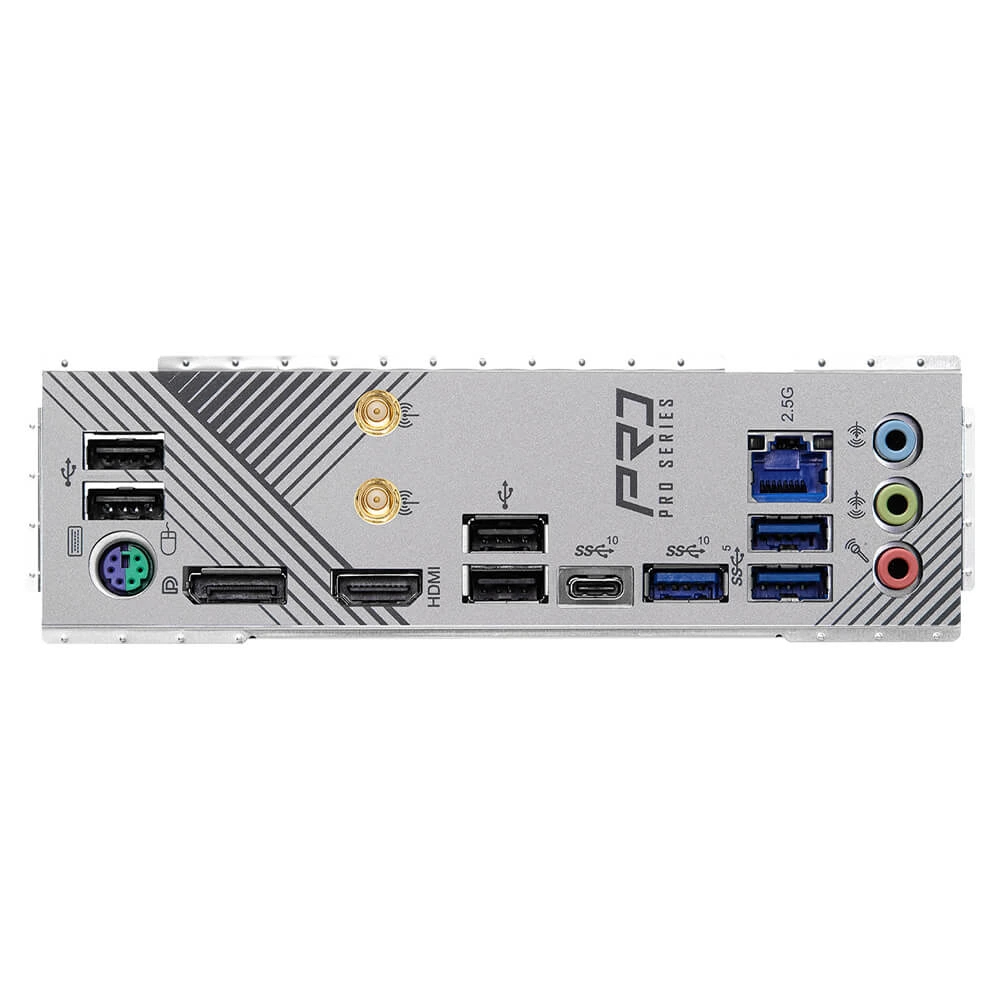

Rear Panel I/O	– 2 x Antenna Ports – 1 x PS/2 Mouse/Keyboard Port – 1 x HDMI Port – 1 x DisplayPort 1.4 – 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) – 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) – 2 x USB 3.2 Gen1 Ports – 4 x USB 2.0 Ports – 1 x RJ-45 LAN Port – HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI	Software – ASRock Motherboard Utility (A-Tuning) – ASRock Dragon 2.5G LAN Software – ASRock Polychrome SYNC* UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Auto Driver Installer – ASRock Instant Flash – ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop.

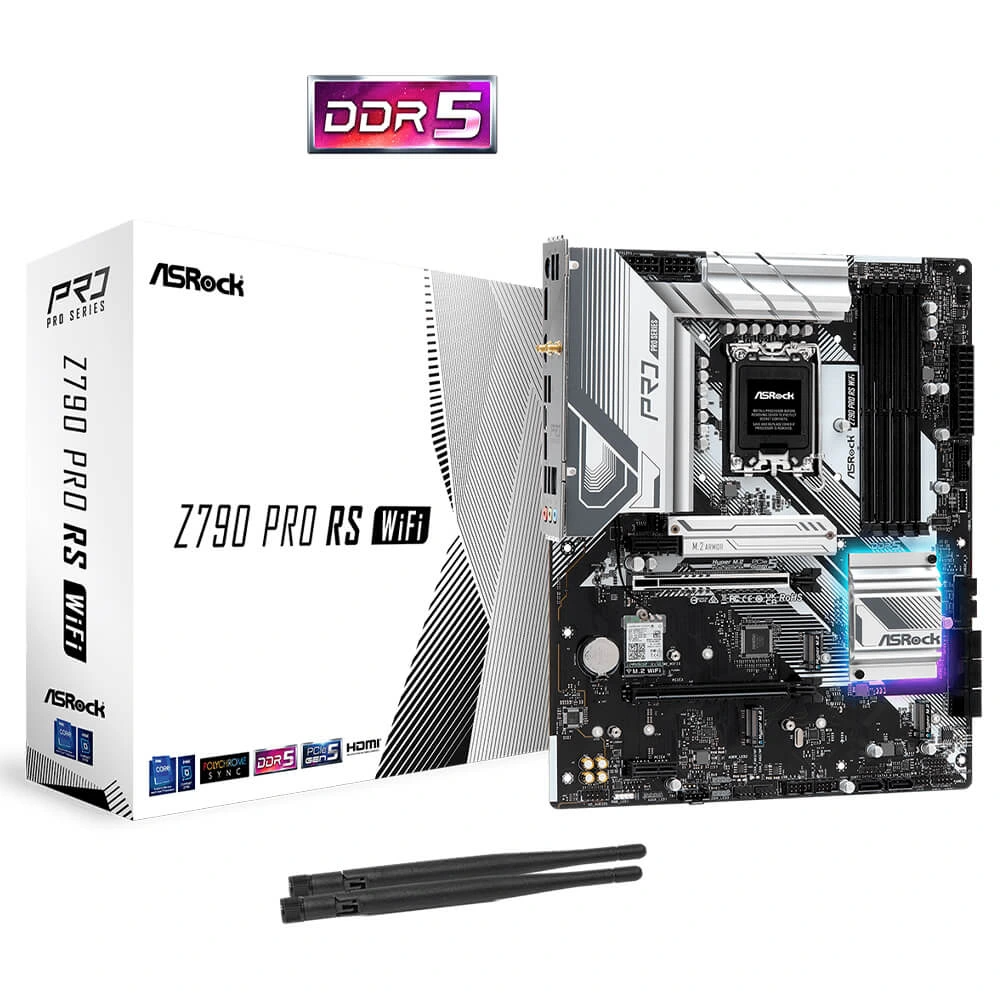

Accessories	– 1 x User Manual – 2 x SATA Data Cables – 2 x ASRock WiFi 2.4/5/6 GHz Antennas – 4 x Screws for M.2 Sockets – 1 x Standoff for M.2 Socket
Form Factor	– ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm – 2oz Copper PCB
OS	– Microsoft^® Windows^® 10 64-bit / 11 64-bit *Windows^® 10 only supports version 21H2 or later
Certifications	– FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required)
