Mainboard MSI MAG B560 TOMAHAWK WIFI

ĐẶC ĐIỂM NỔI BẬT

Mainboard MSI B560 TOMAHAWK WIFI là dòng bo mạch chủ tầm trung mới nhất của MSI. Đây là bo mạch chủ mạnh mẽ, phù hợp cho các CPU từ Intel Core i9 non K đổ xuống.

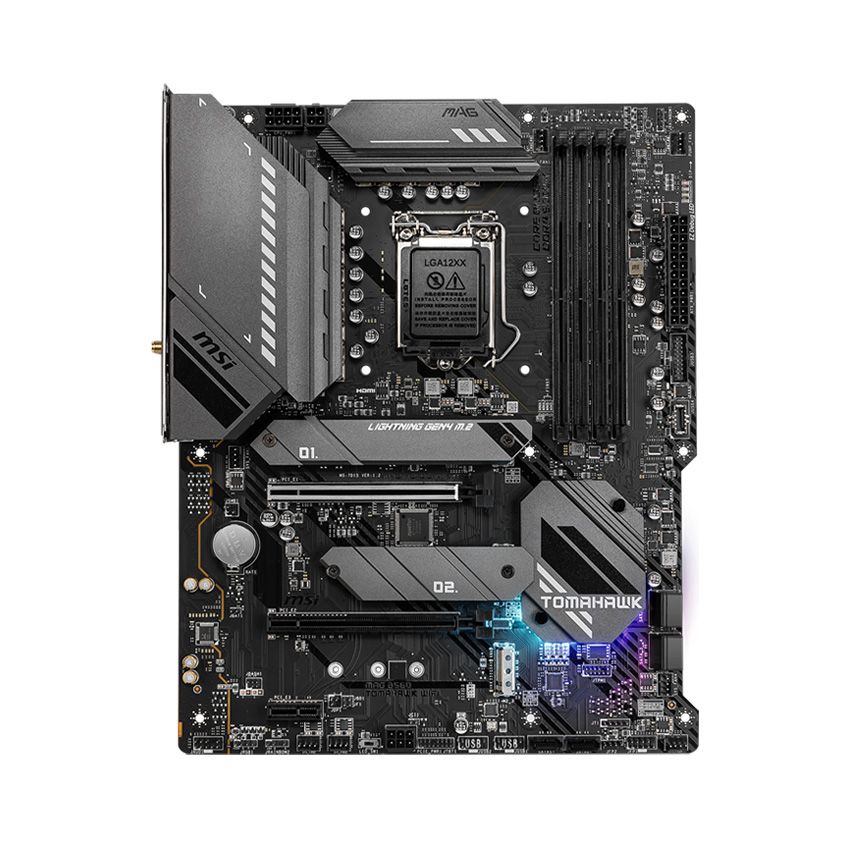

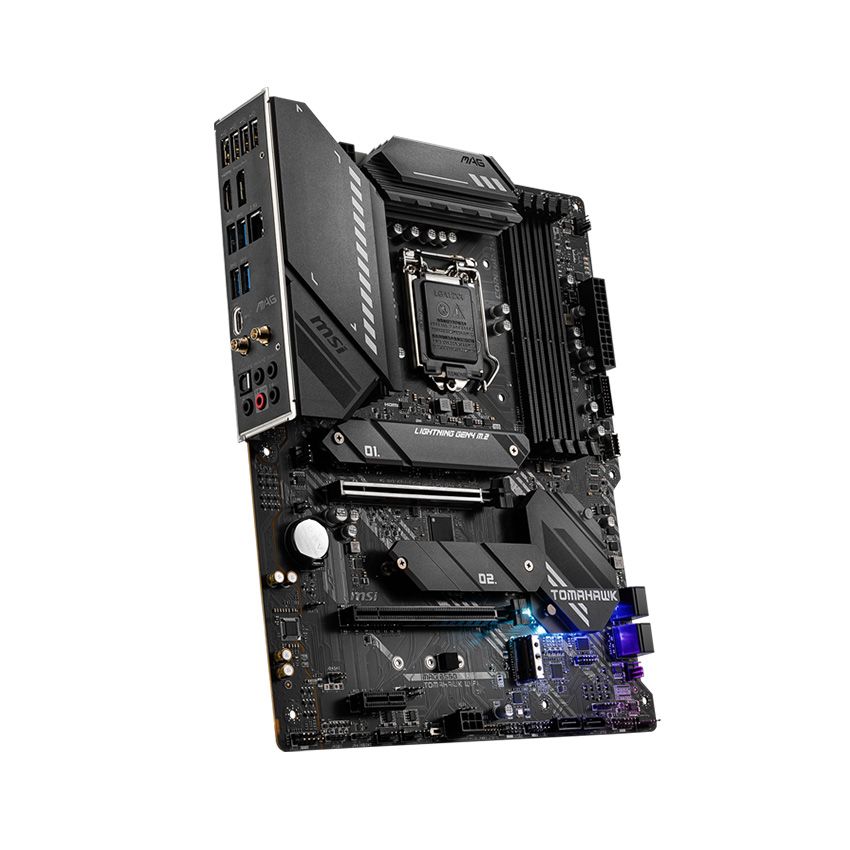

Mainboard MSI B560 TOMAHAWK WIFI

Thiết kế

Dòng bo mạch chủ Tomahawk sở hữu tone màu nòng súng mạnh mẽ, đem lại cá tính riêng cho chủ sở hữu.

Những nâng cấp trên chipset B560 mới của Intel

Cho phép bật XMP cho RAM, bus ram có thể lên đến 5000 Mhz (O.C)
Chất lượng linh kiện tốt hơn
Hỗ trợ PCI-E Gen 4

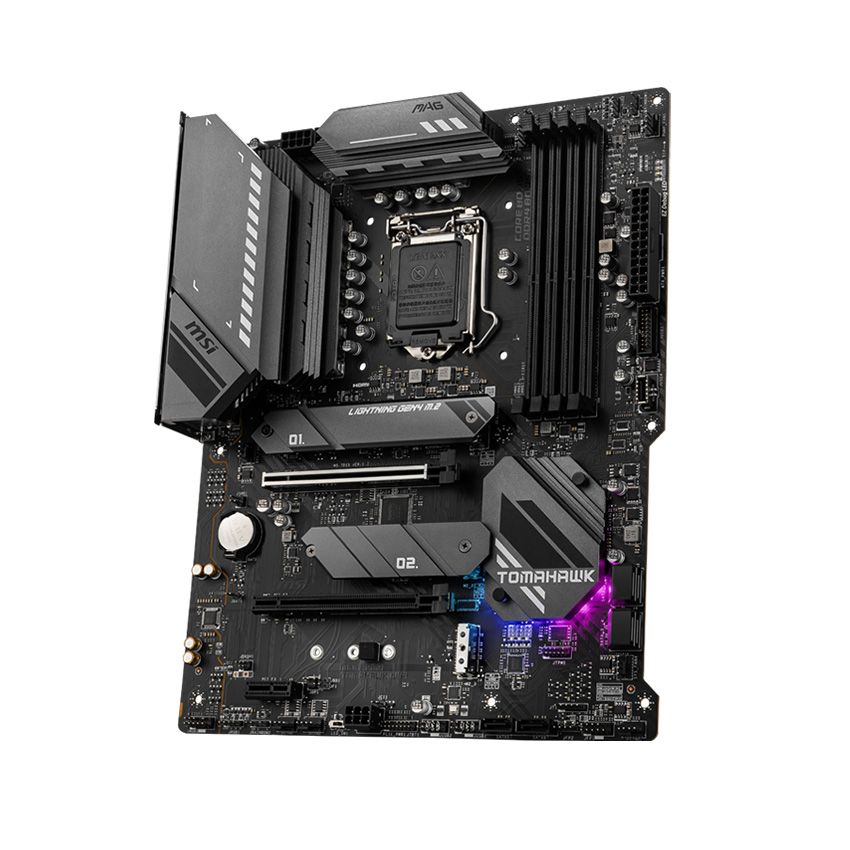

Thiết kế

15 (12+2+1) phase nguồn

PCB 6 lớp, 2oz đồng: Bền bỉ, truyền tải năng lượng và dữ liệu tốt hơn
2 khe M.2 (1 khe 4.0, khe còn lại 3.0)

USB 3.2 Gen 2 Type C
Lan 2.5G, Wifi 6E

Tính năng

MSI Mystic Light: Hỗ trợ các kết nối 5V và 12V, đồng bộ hóa LED RGB của các thiết bị

Tản nhiệt cho khen PCI-E M.2

XMP Cho RAM, tối đa lên đến 5000 Mhz (O.C)

CPU Boost: Hỗ trợ sự ổn định cho CPU bởi hệ thống cấp nguồn chất lượng trên bo mạch chủ MSI
Phần mềm MSI Center đa năng, tiện ích

Xem thêm

Thông số kỹ thuật

CPU	Supports 10th Gen Intel^® Core^™ Processors, 11th Gen Intel^® Core^™ Processors, Pentium^® Gold and Celeron^® Processors¹ Processor socket LGA1200 Please go to intel.com for compatibility information
CHIPSET	Intel^® B560 chipset
MEMORY	4 x DDR4 memory slots, support up to 128GB ¹ Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel^® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5066 MHz 1DPC 2R Max speed up to 4600+ MHz 2DPC 1R Max speed up to 4266+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel^® Extreme Memory Profile (XMP)
EXPANSION SLOT	2x PCIe x16 slots PCI_E1 (from CPU) Support up to PCIe 4.0 for 11th Gen Intel^® CPU Support up to PCIe 3.0 for 10th Gen Intel ® CPU PCI_E2 (from B560 chipset) Support up to PCIe 3.0 x4 1x PCIe 3.0 x1 slot (from B560 chipset)
ONBOARD GRAPHICS	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz¹² 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz¹² Available only on processors featuring integrated graphics Graphics specifications may vary depending on the CPU installed.
MULTI-GPU	Supports 2-Way AMD^® CrossFire^™ Technology
AUDIO	Realtek^® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
LAN	1x Realtek^® RTL8125B 2.5Gbps LAN controller
WIRELESS LAN & BLUETOOTH	Intel^®Wi-Fi 6E AX210 The Wireless module is pre-installed in the M.2 [Key-E] slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz ¹(160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth^® 5.2², FIPS, FISMA Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1. Bluetooth 5.2 will be ready in WIN10 21H1.
STORAGE	6x SATA 6Gb/s ports (from B560 chipset) ¹ 3x M.2 slots (Key M) M2_1 slot (from CPU) Available only on 11th Gen Intel^® CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2¹ slot (from B560 chipset) Supports up to PCIe 3.0 x4 Supports SATA up to 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_3 slot (from B560 chipset) Supports up to PCIe 3.0 x4 Supports 2242/ 2260/ 2280 storage devices Intel^® Optane^™ Memory Ready² Supports Intel^® Smart Response Technology for Intel Core™ processors SATA1 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. Before using Intel^® Optane^™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
USB	Intel^® B560 Chipset 1x USB3.2 Gen 2×2 20Gbps port (Type-C port on the back panel) 1x USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector) 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 Type-A ports available through the internal connector) 4x USB 2.0 ports on the back panel Hub-GL850G 4x USB 2.0 ports available through the internal connectors
FORM FACTOR	Updating
INTERNAL CONNECTORS	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 1x 6-pin PCIE power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 5x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x TBT connector (supports RTD3) 1x Tuning Controller connector

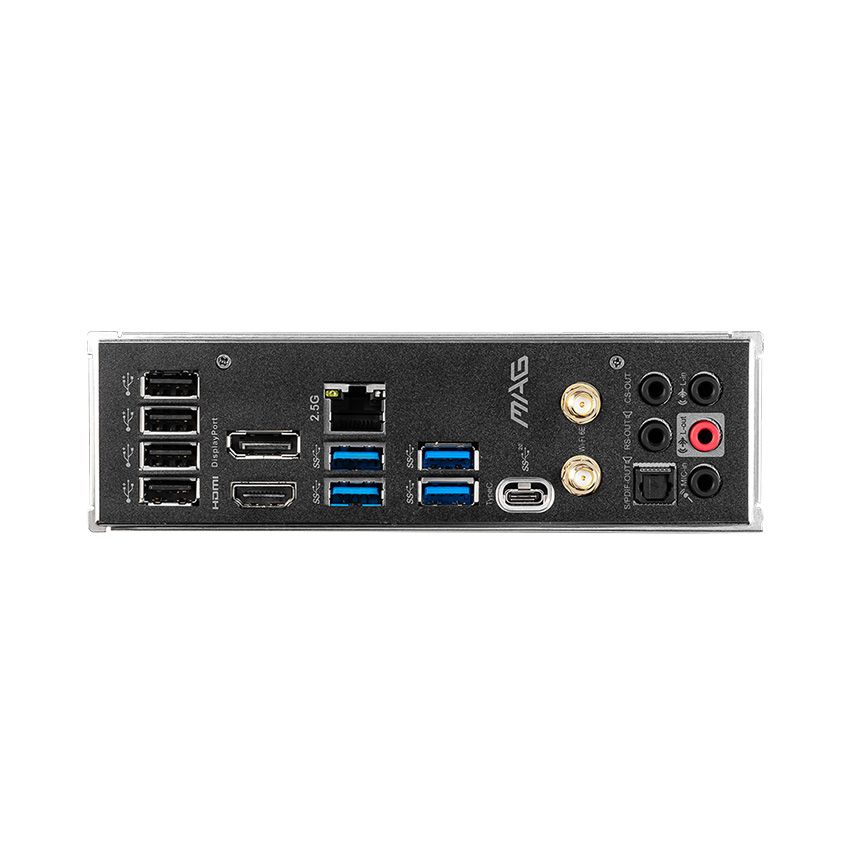

BACK PANEL CONNECTORS	USB 2.0 DisplayPort 2.5G LAN Port Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2×2 20Gbps Type-C Optical S/PDIF OUT

Xem thêm

CPU	Supports 10th Gen Intel^® Core^™ Processors, 11th Gen Intel^® Core^™ Processors, Pentium^® Gold and Celeron^® Processors¹ Processor socket LGA1200 Please go to intel.com for compatibility information
CHIPSET	Intel^® B560 chipset
MEMORY	4 x DDR4 memory slots, support up to 128GB ¹ Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel^® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5066 MHz 1DPC 2R Max speed up to 4600+ MHz 2DPC 1R Max speed up to 4266+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel^® Extreme Memory Profile (XMP)
EXPANSION SLOT	2x PCIe x16 slots PCI_E1 (from CPU) Support up to PCIe 4.0 for 11th Gen Intel^® CPU Support up to PCIe 3.0 for 10th Gen Intel ® CPU PCI_E2 (from B560 chipset) Support up to PCIe 3.0 x4 1x PCIe 3.0 x1 slot (from B560 chipset)
ONBOARD GRAPHICS	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz¹² 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz¹² Available only on processors featuring integrated graphics Graphics specifications may vary depending on the CPU installed.
MULTI-GPU	Supports 2-Way AMD^® CrossFire^™ Technology
AUDIO	Realtek^® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
LAN	1x Realtek^® RTL8125B 2.5Gbps LAN controller
WIRELESS LAN & BLUETOOTH	Intel^®Wi-Fi 6E AX210 The Wireless module is pre-installed in the M.2 [Key-E] slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz ¹(160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth^® 5.2², FIPS, FISMA Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1. Bluetooth 5.2 will be ready in WIN10 21H1.
STORAGE	6x SATA 6Gb/s ports (from B560 chipset) ¹ 3x M.2 slots (Key M) M2_1 slot (from CPU) Available only on 11th Gen Intel^® CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2¹ slot (from B560 chipset) Supports up to PCIe 3.0 x4 Supports SATA up to 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_3 slot (from B560 chipset) Supports up to PCIe 3.0 x4 Supports 2242/ 2260/ 2280 storage devices Intel^® Optane^™ Memory Ready² Supports Intel^® Smart Response Technology for Intel Core™ processors SATA1 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. Before using Intel^® Optane^™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
USB	Intel^® B560 Chipset 1x USB3.2 Gen 2×2 20Gbps port (Type-C port on the back panel) 1x USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector) 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 Type-A ports available through the internal connector) 4x USB 2.0 ports on the back panel Hub-GL850G 4x USB 2.0 ports available through the internal connectors
FORM FACTOR	Updating
INTERNAL CONNECTORS	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 1x 6-pin PCIE power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 5x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x TBT connector (supports RTD3) 1x Tuning Controller connector
BACK PANEL CONNECTORS	USB 2.0 DisplayPort 2.5G LAN Port Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2×2 20Gbps Type-C Optical S/PDIF OUT
