Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics)
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot (from AMD® X570 Chipset)
Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™)
Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics)
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
The speeds may vary for different devices
Mạng
1x Realtek® 8125B 2.5Gbps LAN Controller
Intel® Wi-Fi 6 AX200
Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
Supports Bluetooth® 5.1
The Wireless module is pre-install in the M2_WIFI1 (Key-E) slot
Âm Thanh
Realtek® ALC1200 Codec
7.1-Channel High Definition Audio
Supports Optical S/PDIF output
USB Chipset
AMD® X570 Chipset
3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector)
4x USB 3.2 Gen 1 5Gbps ports available through the internal USB 3.2 Gen 1 5Gbps connectors
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
AMD® Processor
2x USB 3.2 Gen 2 10Gbps (3rd Gen AMD Ryzen™) or USB 3.2 Gen 1 5Gbps (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) ports (1x Type-A & 1x Type-C) on the back panel
2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

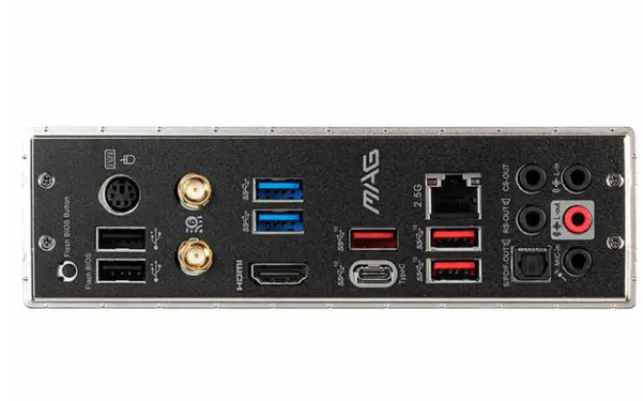

Kết nối ngoài
Keyboard / Mouse
Wireless / Bluetooth
USB 3.2 Gen 1 5Gbps Type A
USB 3.2 Gen 2 10Gbps Type A
2.5G LAN port
Audio Connectors
Flash BIOS button
USB 2.0
HDMI port
USB 3.2 Gen 2 10Gbps Type C
USB 3.2 Gen 2 10Gbps Type A
Optical S/PDIF out
Kết nối trong
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
