Mainboard MSI MPG Z490M GAMING EDGE WIFI

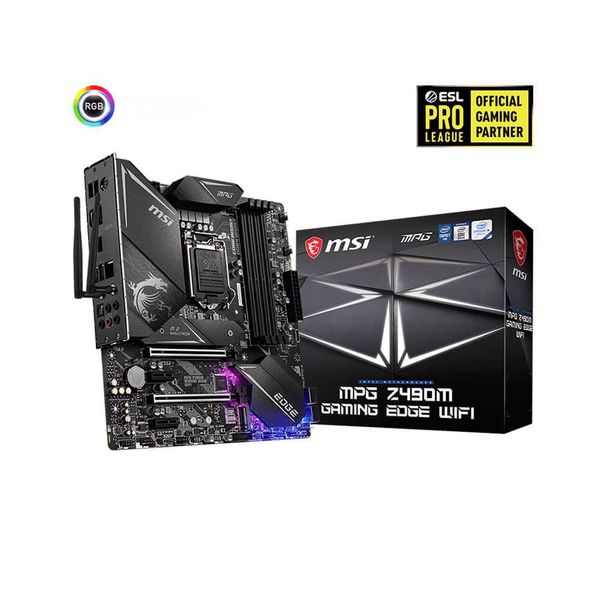

Mainboard MSI MPG Z490M GAMING EDGE WIFI – Socket 1200

ĐẶC ĐIỂM NỔI BẬT

MPG Z490M GAMING EDGE WIFI

Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
Supports DDR4 Memory, up to 4800(OC) MHz
Ready 4 the Future: Support Lightning Gen 4 Solution for the future
Enhanced Power Design: 12+1+1 Duet Rail Power System, 8+4 pin CPU power connectors, Core Boost, DDR4 Boost
Premium Thermal Solution: Aluminum Cover with Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip
Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
Audio Boost: Reward your ears with studio grade sound quality

Thông số kỹ thuật

PROCESSOR	Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket Please go to intel.com for compatibility information. Onboard graphics output are disabled when using the F SKU processors. See supported processors
CHIPSET	Intel® Z490 Chipset
MEMORY	4x DDR4 memory slots, support up to 128GB1 Supports 1R 2133/2666/2933 MHz*1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4266+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) Please refer www.msi.com for more information on compatible memory See supported memory
EXPANSION SLOTS	2x PCIe 3.0 x16 slots*, support x16/ x0 or x8/ x8 mode 2x PCIe 3.0 x1 slots
ONBOARD GRAPHICS	1x HDMI port, supports a maximum resolution of 4096×2160 @30Hz 1x DisplayPort, supports a maximum resolution of 4096×2304 @60Hz Maximum shared memory is 1GB
MULTI-GPU	Supports 2-Way NVIDIA® SLI™ Technology Supports 2-Way AMD® CrossFire™ Technology
STORAGE	Intel® Z490 Chipset 4x SATA 6Gb/s ports 1 2x M.2 slots (Key M)Supports up to PCIe 3.0 x4 and SATA 6Gb/s M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices1 M2_2 slot supports 2242/ 2260 /2280 storage devices2 Intel® Optane™ Memory Ready*** 3 SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID	Intel® Z490 Chipset Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 PCIe storage devices
USB	Intel® Z490 Chipset 3x USB 3.2 Gen 2 10Gbps ports (1 Type-A port and 1 Type-C port on the back panel, 1 Type-C internal connector) 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal USB 3.2 Gen 1 connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AUDIO	Realtek® ALC1220 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
LAN	1x Realtek® RTL8125B 2.5Gbps LAN controller
WIFI & BLUETOOTH	Intel® AX201 Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps WiFi 6 Pre-Certified Supports Bluetooth® 5.1 , FIPS, FISMA The Wireless module is pre-install in the M2 (Key-E) slot Only support windows 10 64-bit
INTERNAL CONNECTORS	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 2x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x Serial port connector 1xTPM module connector 1x Clear CMOS jumper
BACK PANEL PORTS	PS/2 Combo Port DisplayPort USB 3.2 Gen 2 10Gbps (Type-A) LAN Port HD Audio Connectors USB 2.0 HDMI Port USB 3.2 Gen 2 10Gbps (Type-C) USB 3.2 Gen 1 5Gbps (Type-A) Wi-Fi / Bluetooth Optical S/PDIF OUT
DIMENSIONS	Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
MOUNTING	8 mounting holes
OPERATING SYSTEM	Support for Windows® 10 64-bit
