Sản phẩm
Main - Bo mạch chủ
Tên Hãng
MSI
Model
CPU hỗ trợ
3rd Gen AMD Ryzen™ Threadripper™ Desktop Processors
Chipset
AMD® TRX40 Chipset
RAM hỗ trợ
8 x DDR4 memory slots, support up to 256GB
Supports JEDEC 1R 2133/ 2400/ 2666/ 3200 MHz
1DPC 1R max speed 4666 MHz
1DPC 2R max speed 4000 MHz
2DPC 1R max speed 4000 MHz
2DPC 2R max speed 3600 MHz
Quad channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory
Supports un-buffered memory
Khe cắm mở rộng
4 x PCIe 4.0 x16 slots (support x16/x8/x16/x8 mode)
1 x PCIe 3.0 x1 slot
Multi-GPU
Supports 3-Way NVIDIA® SLI™ Technology
Supports 3-Way AMD® CrossFire™ Technology
Lưu Trữ
8 x SATA 6Gb/s ports
2 x M.2 slots (Key M)
M2_1 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices
M2_2 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices
Supports RAID 0, RAID 1 and RAID 10
USB
2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port on the back panel and 1 Type-C port through the internal USB connector)
6 x USB 3.2 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen1 connectors)
4 x USB 2.0 (High-speed USB) ports available through the internal USB 2.0 connectors
2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
1 x USB 3.2 Gen2x2 (SuperSpeed USB 20Gbps) Type-C port on the back panel
Âm Thanh
7.1-Channel High Definition Audio
Supports front & rear panel Mic-in
Supports S/PDIF output
LAN / Wireless
2 x Intel® I211AT Gigabit LAN controller
Cổng kết nối ( I/O bên trong)
1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
8x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen2 Type-C port
2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin Water Pump Fan connector (supports up to 2A)
4x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x 4-pin 5050 RGB LED connector
2x 3-pin ARGB LED connectors
1x 3-pin CORSAIR LED connector
1x Slow mode booting jumper
1x Power button
1x Reset button

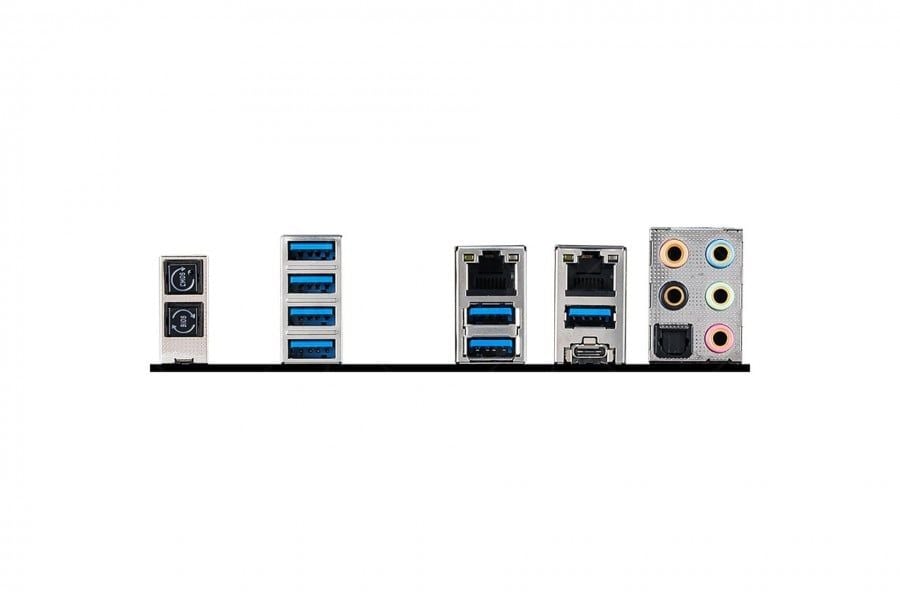

Cổng kết nối ( I/O Phía sau)
Clear CMOS Button
USB 3.2 Gen1 Type-A
Gigabit LAN
Audio Connectors
Flash BIOS Button
USB 3.2 Gen2 Type-A
USB 3.2 Gen2x2 20G Type-C
Optical S/PDIF out
Kích cỡ
12 in. x 9.6 in. (30.4 cm x 24.4 cm)
ATX Form Factor
