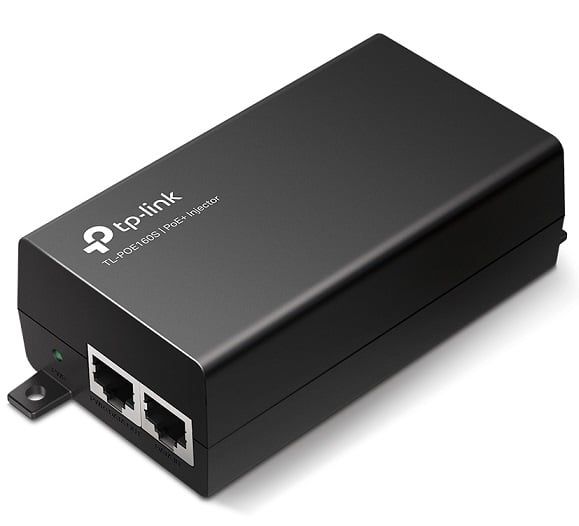

PoE+ Injector TP-LINK TL-POE160S

ĐẶC ĐIỂM NỔI BẬT

PoE+ Injector TP-LINK TL-POE160S
2 Gigabit ports ensure faster transmission
Complies with IEEE802.3af/at standards, supplies up to 30W
Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
Automatically determines and supplies the exact power to meet the device's need
Wall-mounting and desktop design accommodates most installation scenarios
Plug & Play installation, requires no configuration
Integrated power supply

Standards and Protocols	IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at
Certification	FCC, CE, RoHS
Environment	Operating Temperature: 0°C to 40°C (32°F to 104°F) Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 10% to 90%RH non-condensing Storage Humidity: 5% to 90%RH non-condensing
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)
Ports	1 10/100/1000Mbps RJ45 data-in port 1 10/100/1000Mbps RJ45 power+data-out port 1 AC power port
Power Consumption	Input: 100-240 V, 50/60 Hz Output: Auto-determine the necessary power requirements (max. 30 W)
Basic Function	Auto-Sensing Algorithm enables providing power with 802.3af/at PD Auto-determine the necessary power requirements Wall-mounting and desktop installation supported Plug-and-Play
LED Indicator	ON: Supplying power normally OFF: No power supply
Dimensions (W x D x H)	125 x 59 x 37 mm
